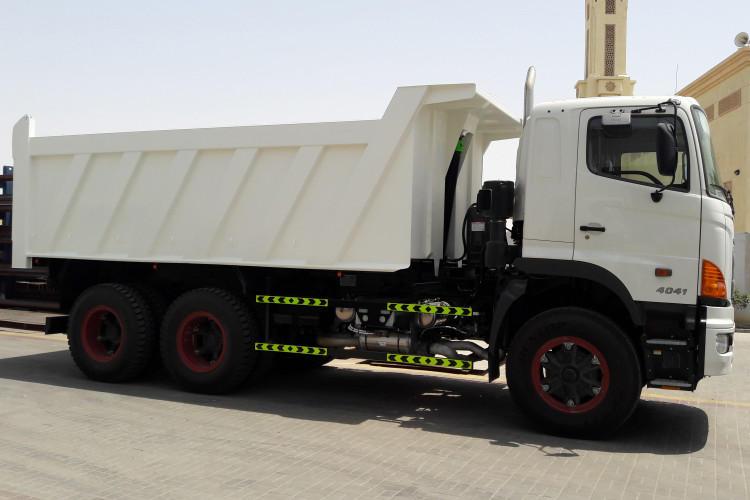

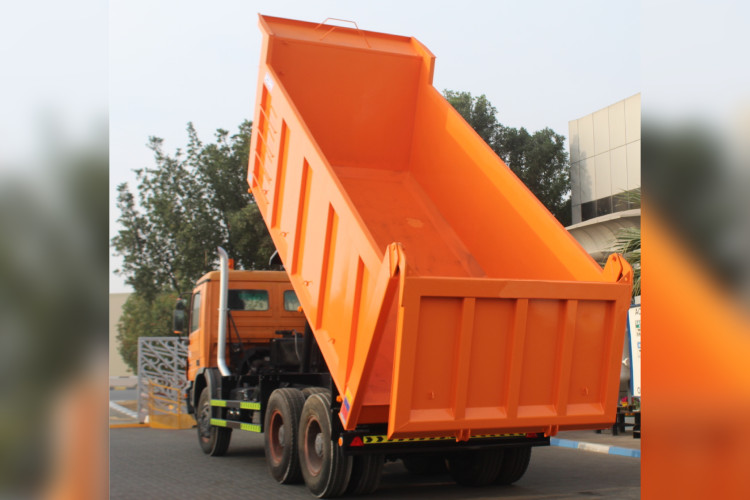

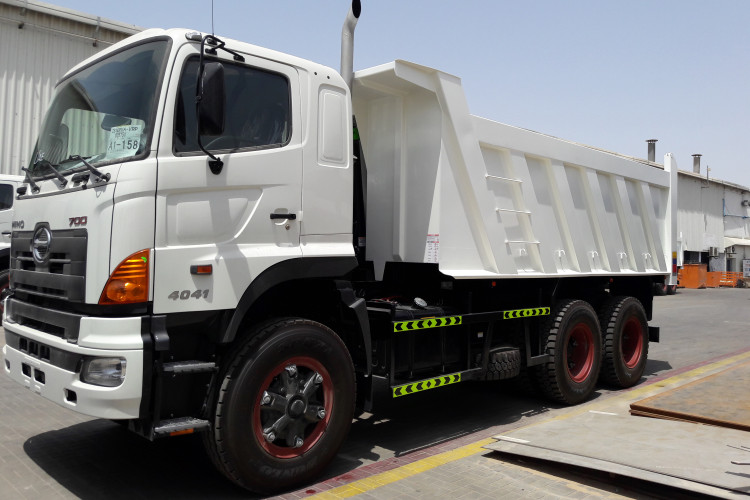

Tipper
Specification:
- Capacity : 5 – 22 CBM
- Application : For transportation of Dry sand, Aggregate, Rocks, Other commodities
- Shape : Box type / Taper Door / Half pipe / Scow end
Construction :
- Sand Application:-
- All welded steel construction - Steel - SA 36/ST 52-3, Equivalent steel
- Door: Automatic opening/closing with claw lock mechanism
- Rock application:-
- All welded steel construction – Steel for tipper is Hardox – 450
- Welded angles all over inside body to take care of rock impact load
- Door: Scow end door with chain mechanism
- Front end hydraulic jack / Under body jack
- Electricals – 7 pin - 24V – Side lights, Reflectors
Accessories :
- Spare wheel carrier to accommodate two spare tires
- Side & Rear anti run bumper
- Mudguards & Mud flaps
- Tool box & GRP Water tank
Finish :
- Grit blasting followed by three coat paint system
