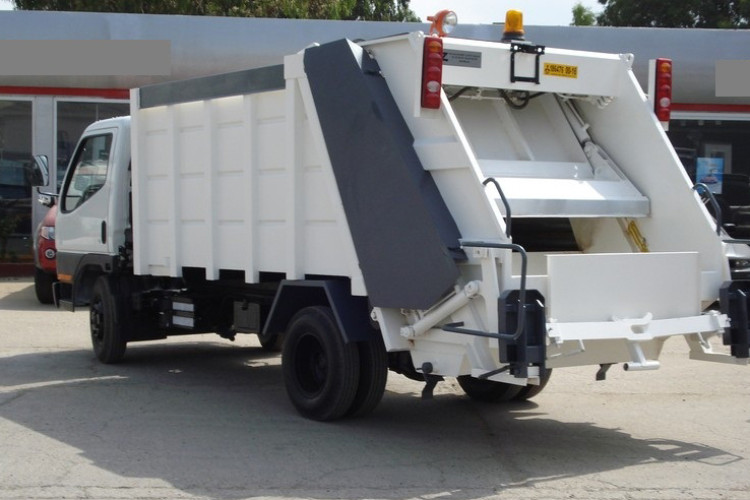

Refuse Compactor
Specification:
- Capacity :
- Body = 5 – 22 CBM
- Bin/Hopper = 80/120/240 Liters
- Application : For transportation/compaction of waste material size
- Construction : All welded steel construction - Steel - SA 36/ST 52-3/Equivalent steel
- Compaction :
- Garbage taken inside body via sweeper shovel-actuated by two double acting hyd cylinders
- Garbage pushed into the body by two double acting sledge cylinders
- Lifting :
- Tail gate raise achieved by two double acting cylinders
- Equipped with safety device to prevent tail gate falling abruptly in case of hose burst/failure
- Electricals : 7 pin - 24V – Side lights, Reflectors
Pump :
- Diesel or Petrol Engine driven – Mounted on chassis
- PTO driven pump
Accessories :
- Spare wheel carrier to accommodate spare tire
- Side & Rear anti run bumper
- Mudguards & Mud flaps
- Tool box & GRP Water tank
- Hose box with fill & discharge hoses – On either side of the tank
Finish :
- Internal Grit blasting – SA 2.5 & Epoxy coating – Two coats – To suit content
- External Grit blasting - SA 2.5 & Epoxy primer followed by two coat of paint
