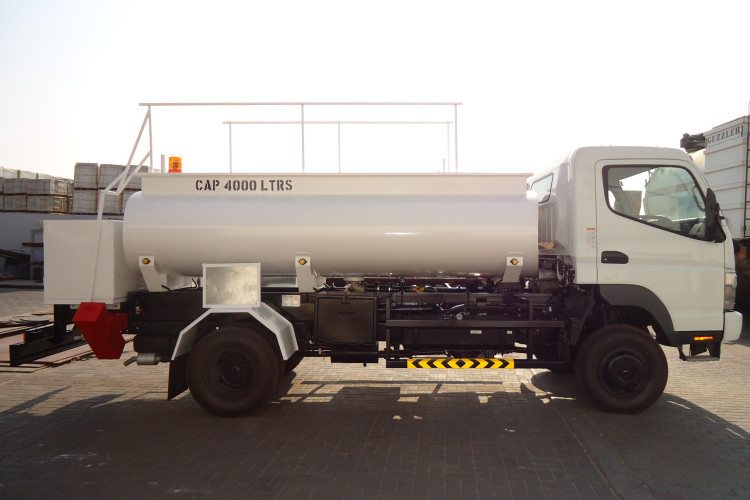

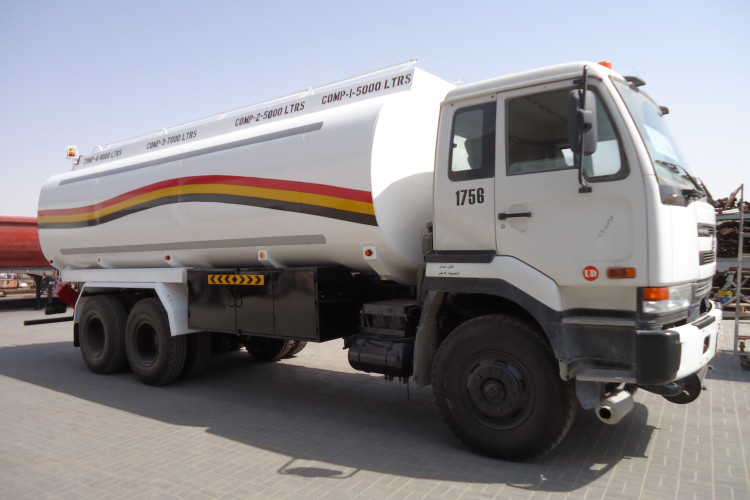

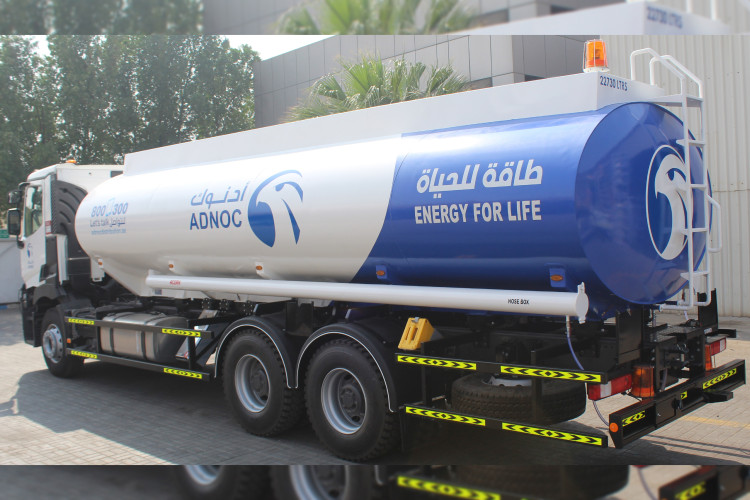

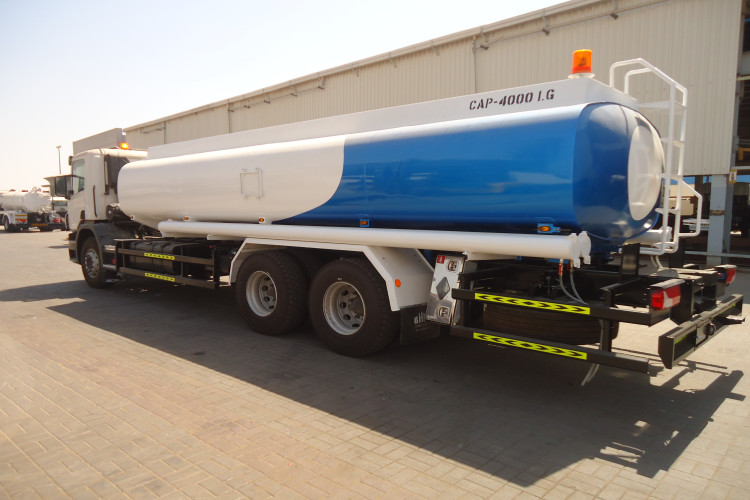

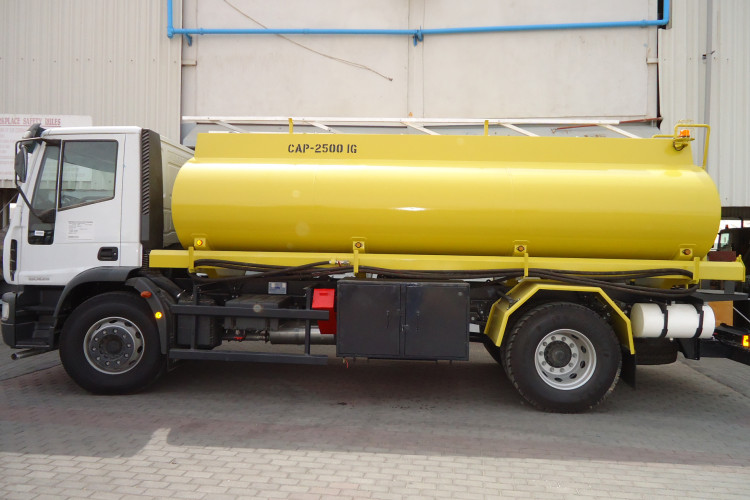

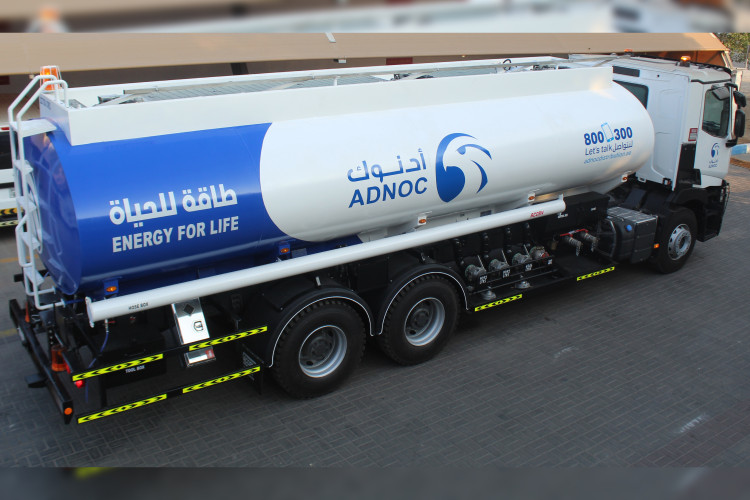

Fuel Tank
Specification:
- Capacity : 800 – 5000 IG
- Shape : Elliptical, Double-D or Customized
- Compartment : Single or Multiple compartment
- Application : For transportation of Diesel, Petrol, Crude oil etc.
Construction :
- All steel weld construction
- Steel - SA 36/ST 52-3/Stainless Steel/Aluminum/Equivalent steel
Pipe lines :
- Top or Bottom loading
- Fill line – Customized as per client requirements - With Valves & Unions
- Discharge line - Customized as per client requirements - With Valves & Unions
- Vapor Recovery line – Optional
- Man ways : Quantity as per number of compartment for easy accessibility
Safety devices :
- Pressure & Vacuum relief valves
- Optical sensor to avoid spill over
- Brake interlock
- Emergency shut off
- Vent line & Spill over tray connected to optional scrubber tank
Level Indicator :
- PVC/Aluminum dipstick
- Sight glass – Magnetic level indicator
Finish:
- Internal Coating : Epoxy primer/Diesel wash
- External Finish : Grit blasting followed by three coat paint system
