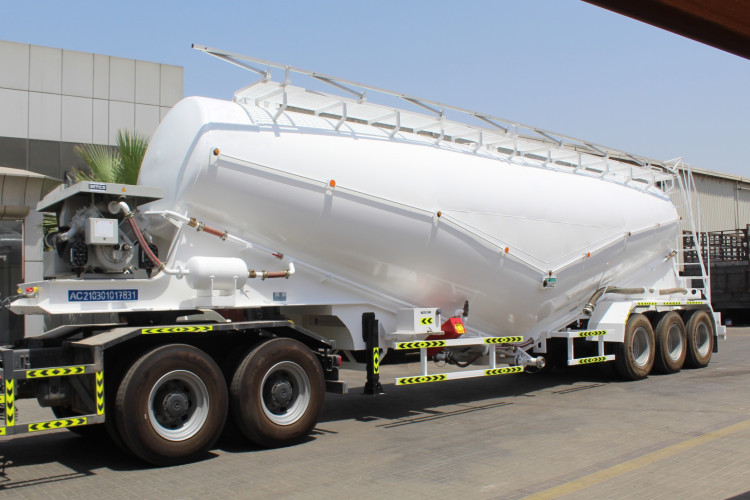

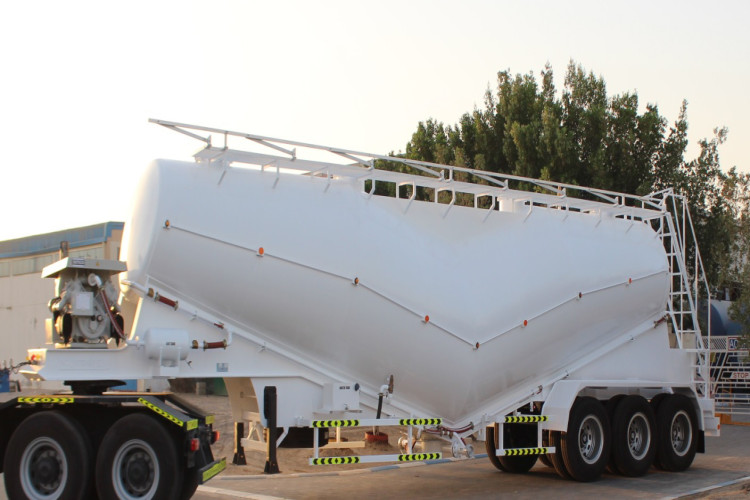

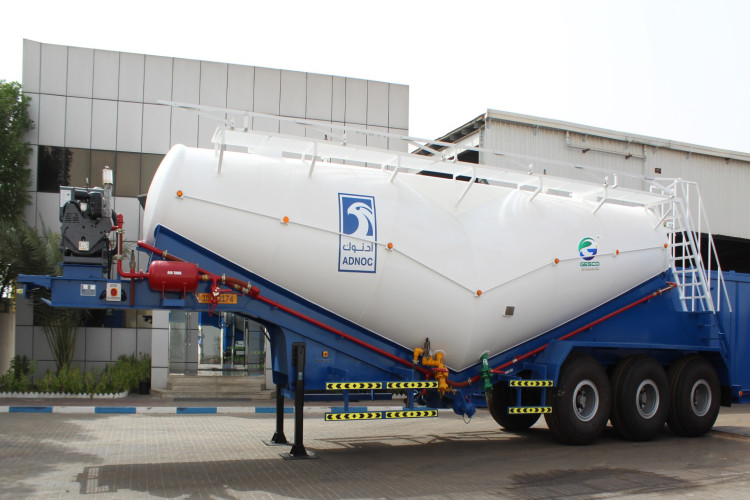

Banana Trailer
Specification:
- Capacity : 25 – 60 CBM
- Application : For transportation of Dry sand, Aggregate, Rocks, Other commodities
- Shape : V / Banana type self-supporting body
- Construction : All steel welded construction – Steel A 36/ST 52-3/Equivalent
- Designed to operate under working pressure of above 2 Bar
- Both ends of the tank are dished
- Aeration system – Canvas hose with aluminum strip
- Safety accessories – Pressure relief valve, Pressure gauge, Non return valve,
- Discharge – Both side of the tank with air hoses, shut off valves
- Man way at the top – 20”
- Walk way on the top with foldable hand rail
- Axle – Multi leaf Mechanical/Air suspension – Tandem/Trident
- Tires – Twin tire fitment - As per Load/Terrain condition
- Brakes – Two line air brake system – Acting on all wheels – Automatic load sensing valve
- Landing gear – Two speed – Manual
- King pin – 2” or 3.5” – Interchangeable
- Electricals – 7 pin - 24V – Side lights, Reflectors, Reverse lights
Accessories :
- Compressor : Air compressor – Piston type – With Deutz diesel engine
- Discharge hoses – Steel wired
- Spare wheel carrier
- Rear anti run bumper
- Mudguards & Mud flaps
- Tool box & GRP Water tank
Finish :
- Grit blasting followed by three coat paint system
