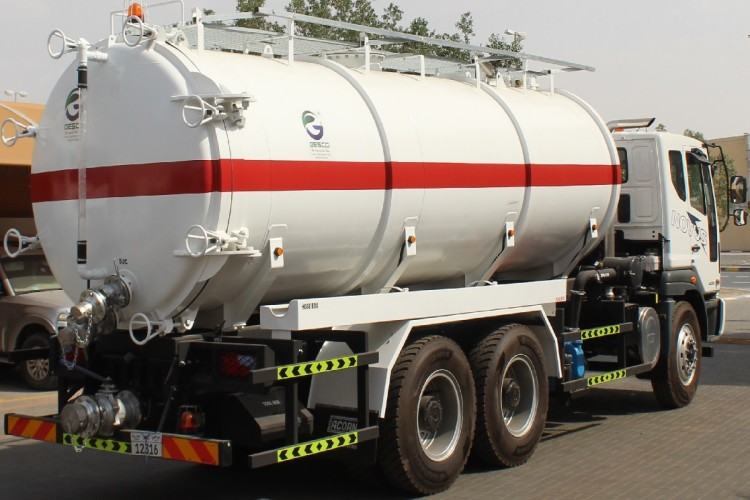

Sewage Tank
Specification:
- Capacity : 1000 – 5000 IG
- Application : For transportation of Sewage water, Treated water, etc.
- Shape : Cylindrical with outer rings for stiffening
- Construction : All welded steel construction - Steel - SA 36/ST 52-3/Equivalent steel
- Electricals : 7 pin - 24V – Side lights, Reflectors, Reverse lights
- Pump : PTO driven vacuum pump
Door :
- Full open type – With hinges at driver side at rear – Secured with set of clamps
- Sealed with neoprene rubber – Provision of greasing for clamp lubrication
Safety Equipment :
- Pressure & Vacuum relief valve – To control pressure and vacuum inside tank
- Primary & Secondary cut off – To prevent water entering inside pump
- Combination gauge – Showing pressure and vacuum inside tank
Accessories :
- Level Indicator – Slight glass – Showing level of content inside tank
- Optional 20” inspection man way
- Spare wheel carrier to accommodate spare tire
- Side & Rear anti run bumper
- Mudguards & Mud flaps
- Tool box & GRP Water tank
- Hose box with fill & discharge hoses – On either side of the tank
Finish :
- Internal: Grit blasting – SA 2.5 & Epoxy / Coal tar coating – Two coats
- External Grit blasting - SA 2.5 & Epoxy primer followed by two coat of paint
