SWIVEL JOINTS
GESCO can supply series of integral Forged high pressure pipe fittings, Flowline Fittings and Manifolds in comply with API 6A, 16C. Including hammer union, union crossover adaptors, union bull, bull plug, tee, cross, flange to wing adapters, wing to wing adapters, flange to union crossover, long-radius swivel joint, short-radius swivel joint, pup joints, cementing & circulating hoses incorporate swivel joint, steel hose loop, etc….
All these parts are alloy steel integral forged, with reliable performance to suit high pressure condition.

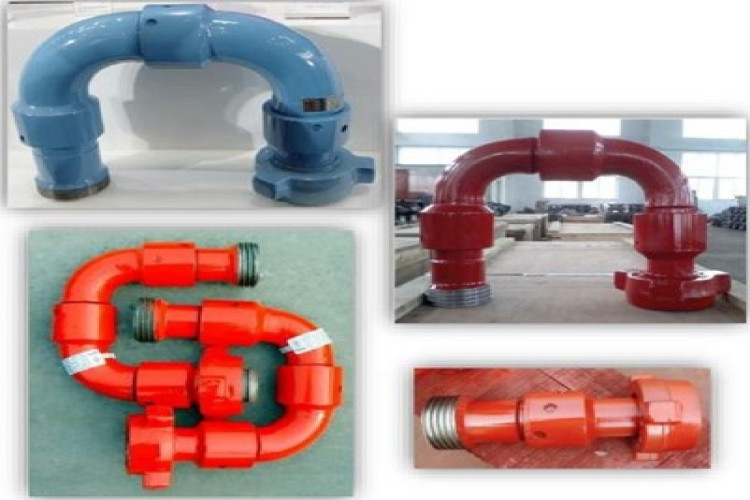

LONG SWEEP SWIVEL JOINTS:
Long-radius Swivel Joint is metal pipe joints with ball bearings for 360-deg rotating, designed especially for abrasive applications such as fracturing, choke and- kill lines, cementing and circulating hoses, acidizing, and test lines; for high pressure and Extra high pressure from 6000 to 20000 psi with Union and Female line, pipe threads end connections in Silver, Olive Green, Black, Red, Light Blue. These styles permit 360-deg rotation and movement in one, two, or three planes, and can be assembled using two or more standard pieces
Technical Parameter:
- Working Pressure: 42Mpa-140Mpa
- Working Temperature: -29-121 C
- Standard: API Spec 16C or NACE MR 0175
- Nominal Size: 1"-4"
- Medium: Standard Trim or H2S
