MANWAYS

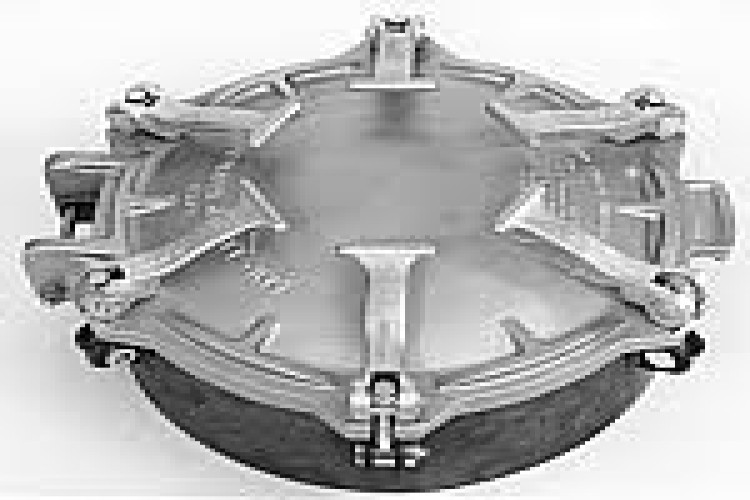

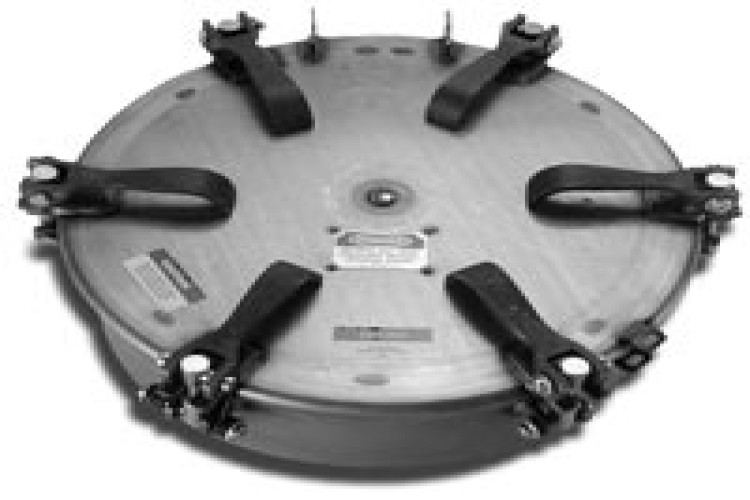

GESCO can provide manway with cover, circular type, it is carbon steel manway with aluminum/carbon steel cover that fits on openings on top of tanks or containers. It offers a quick, easy and convenient means of entry and egress to tank interiors. It provides a cover, situated above the liquid level, but no closable means of access to the interior of the vessel.
Application:
- The Manway with cover is designed for use in tanks or containers for various applications across the Oilfield, Utilities and Process industries.
Benefits:
- High-quality, Advanced design, Wide range of pressure settings to provide maximum tank protection & Low maintenance cost.
Design:
- Circular Type consists of a Carbon steel Base aluminum/carbon steel cover
- Hinged cover provides a fixed pivot point, ensures proper reseating and added safety.
- Cover cannot separate from the base.
- Easily lifted open to provide a large, unobstructed passage for easy tank access.
TECHNICAL DATA
- Pressure Range: up to 60 psi
Materials
- Base: Carbon steel
- Cover: Carbon Steel or Aluminum as requested
- Gasket: Buna-N (1019-0011) or alternative as per application
Surface finish Paint:
- SA 2.5 grit blasting
- Two coat of epoxy primer
Approximate weight: 43 kg (approx.)
