INTEGRAL FITTINGS

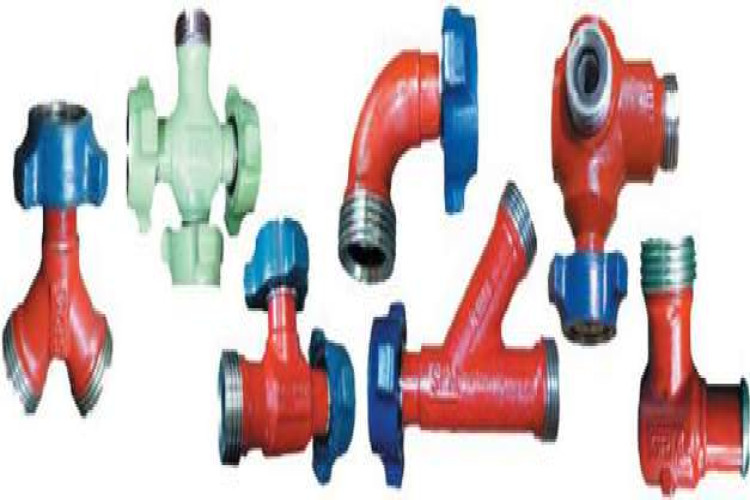

GESCO can provide series of high-pressure integral fittings and welded fittings, including Elbows, Tees, Crosses, Laterals and Wyes with size ranging from 2" to 4" and pressure from 3000 psi to 20000 psi. The integral connections made of high strength alloy steel heat-treated with strong strength and longer service life. Wing union end or welded end, special connections are available upon request. All is designed and inspected in accordance with API Spec 6A.
Also provides manifold fitting with standard LP thread or Schedule XX or 160 buttweld end connections in 2", 3", 4“ & 5" standard 5000 psi working pressure or 7500 psi. All fittings are hydrostatically tested prior to shipment and full certification can be supplied upon request.
Includes:

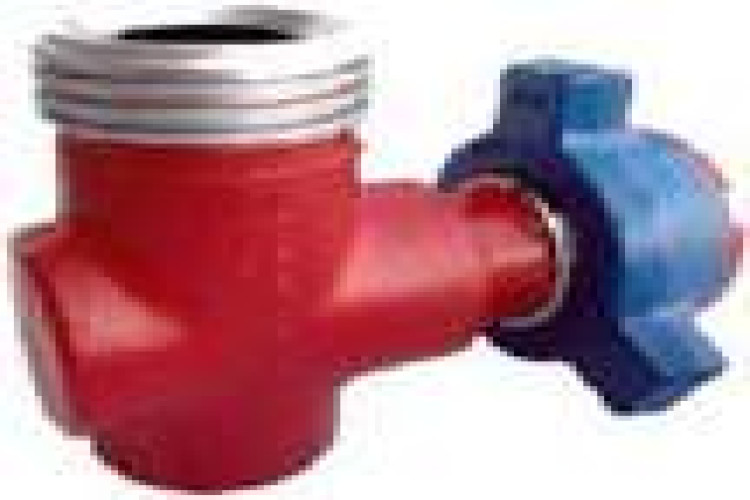

- 4SQ Long Sweep Ells
- 9QQ Long Sweep Ells
- 90Q Long Sweep Ells with 2 in. outlet
- 16QQ Standpipe Gooseneck
- 16QQ Standpipe Gooseneck with top outlet
- 180Q Standpipe Gooseneck

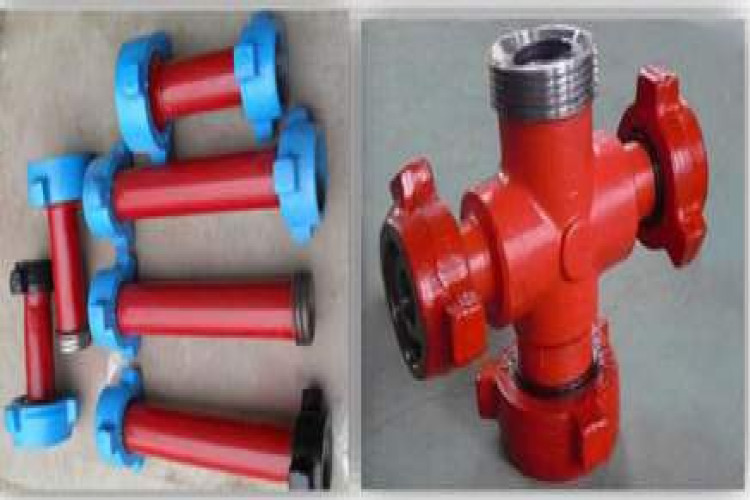

- Long Sweep Full Flow Cross

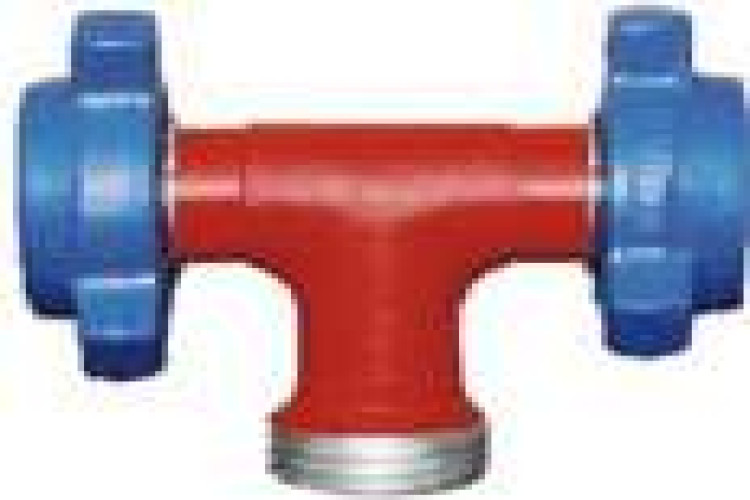

- Long Sweep Full Flow Tee
- Lon g Sweep Tee
- Long Sweep Y
