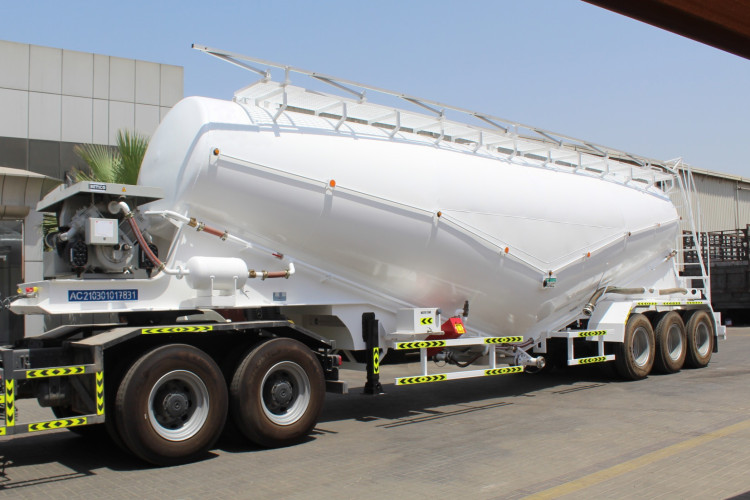

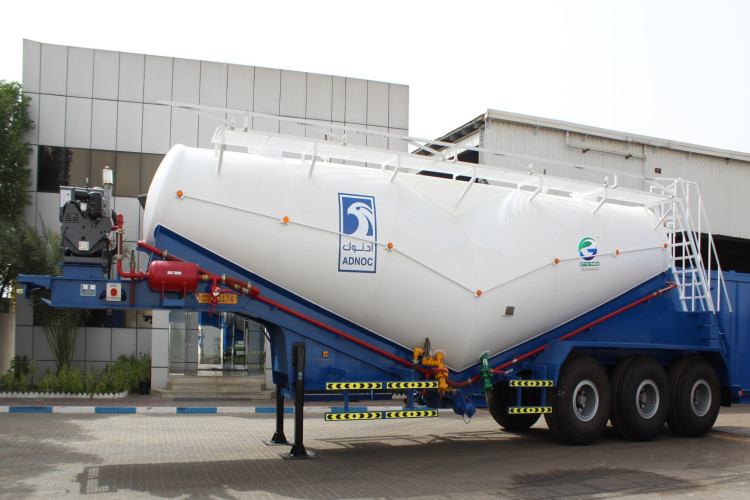

Banana Bulker
Specification:
- Capacity : 20 – 60 CBM
- Certification : U-stamp. Non U-stamp
- Shape : “V” type with self-supporting tank construction
- Compartment : Provisional Single or Multiple compartment
- Application : Suitable for Slurry, Water, HCL (Up to 32% concentration), Crude oil and other chemicals
Construction :
- Steel - SA 36, 516 Gr.70, ST 52-3, Equivalent steel
Trailer:
- Axle – Tandem / Trident axle – Mechanical suspension
- Tires – Suitable for load / terrain condition
- Brake – Two line air brake system, Spring assisted brakes
- King pin – 2” – JOST – Interchangeable with 3.5”
- Landing Leg – JOST - 2 Speed
- Electricals – 7 pin - 24V – Side lights, Reflectors, Reverse lights
Pipe lines :
- Fill line – With Valves Unions – One or Two – As per client requirements
- Discharge through sump – On both sides – With valves & unions
- Vent line – With Valves unions
- Man ways : Minimum 2 numbers – At top for easy accessibility
- Compressor : Air compressor – Piston type – With Deutz diesel engine
- Aeration System : Canvas hose with aluminum strip – Europe
Testing/Inspection :
- Tank weld joints – MPI / Radiography – As per client requirements
- Hydro test – As per working pressure – Witnessed by qualified third party
Accessories :
- Discharge hoses – Steel wired
- Spare wheel carrier
- Rear anti run bumper
- Mudguards & Mud flaps
- Tool box & GRP Water tank
External Finish :
- Grit blasting followed by three coat paint system
