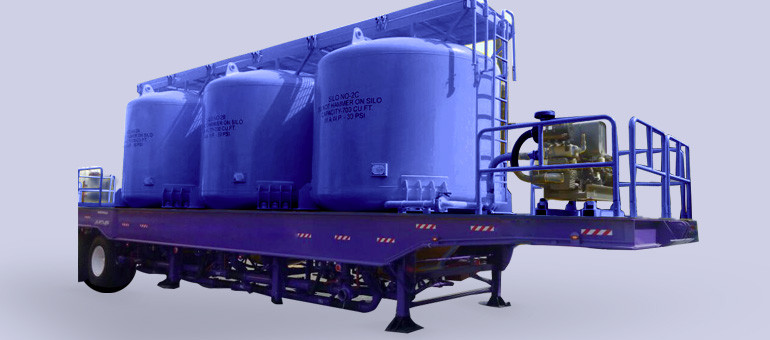

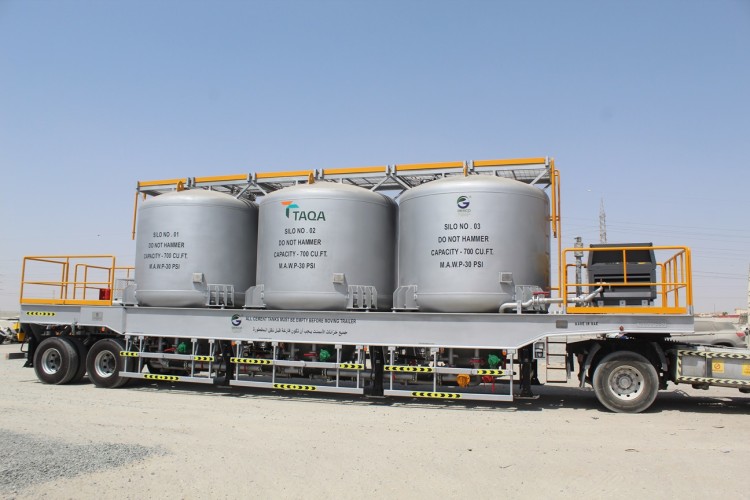

Tripod Bulker
Capacity : 20 – 60 CBM
Certification : U-stamp. Non U-stamp
Construction : Steel - SA 36, 516 Gr.70, ST 52-3, Equivalent steel
- Axle – Tandem / Trident axle – Mechanical suspension
- Tires – Suitable for load / terrain condition
- Brake – Two line air brake system, Spring assisted brakes
- King pin – 2” – JOST – Interchangeable with 3.5”
- Landing Leg – JOST - 2 Speed
- Electricals – 7 pin - 24V – Side lights, Reflectors, Reverse lights
Pipe lines : Fill / Vent / Discharge line – Terminated with Valves & Hammering unions/Customized
- Aeration system with Air jets / Aeration pad
Man ways : One number on each silo – At top for easy accessibility
Compressor : Air compressor – Piston type – With Deutz diesel engine
Aeration System : Jet or pad system
Testing/Inspection : Tank weld joints – MPI / Radiography – As per client requirements
- Lifting lugs - Load test – MPI testing - Certified for empty lift - Witnessed by qualified third party
- Hydro test – As per working pressure – Witnessed by qualified third party
External Finish : Grit blasting followed by three coat paint system
