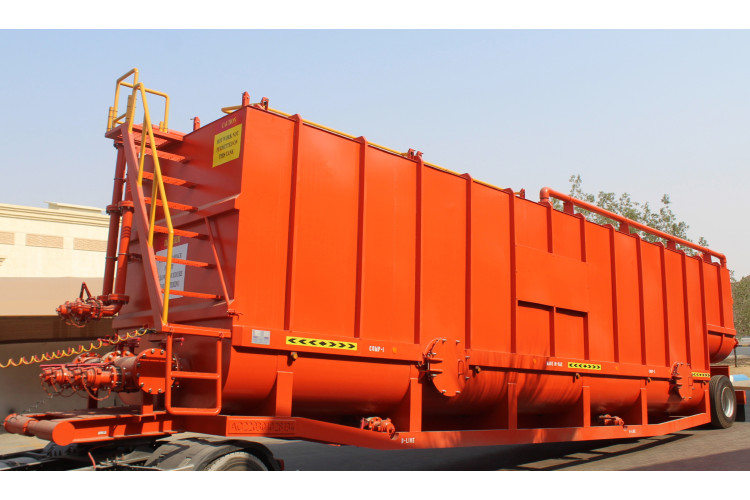

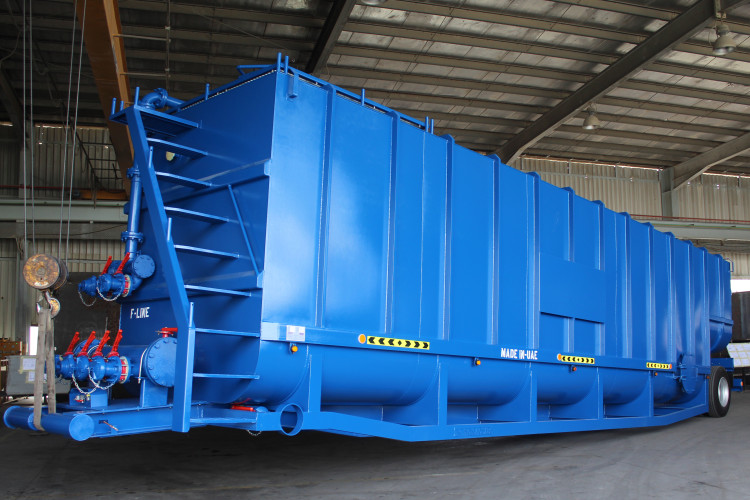

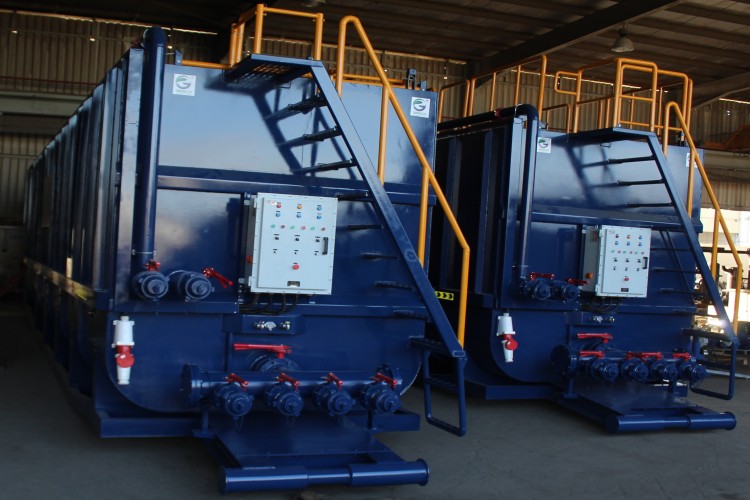

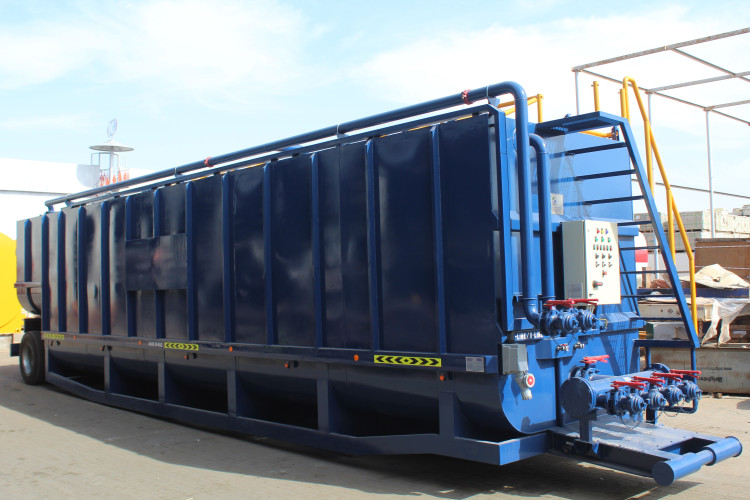

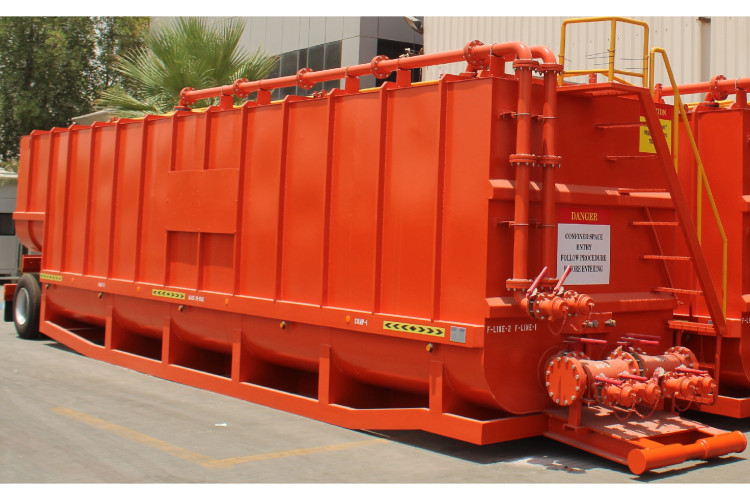

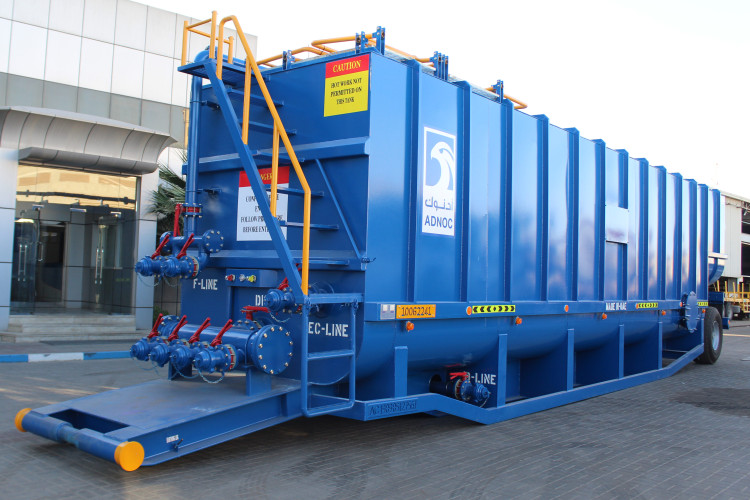

Frac tank
Specification:
- Capacity : 300 BBL - 500 BBL
- Shape : Rectangular with - A. Bottom round & top flat, B. Bottom & Top round, C. Bottom “V” & top flat
- Compartment : Single or Multiple compartment
- Application : Suitable for Slurry, Water, HCL (Up to 32% concentration), Crude oil and other chemicals.
- Construction : Steel - SA 36, 516 Gr.70, ST 52-3, Equivalent steel
- Axle – 12/15 Ton – Mechanical suspension – Under slung
- Tires – 11 R 22.5
- Brake – Two line air brake system, Spring assisted brakes
Pipe lines :
- Fill line – With Valves & Hammering unions – One or Two – As per client requirements
- Discharge Manifold (6”/8”/10”) – 2-4 number of outlets – With Valves & Hammering unions
- Vent line – One number per compartment - With Valves & Hammering unions
- Drain line - One number per compartment - With Valves & Hammering unions
- Manways : Minimum 2 numbers – One at bottom and one at top for easy accessibility
Level Indicator :
- PVC Level indicator (Internal) near manway.
- Sight glass – Magnetic level indicator - Optional
Internal Coating :
- Epoxy primer, Coal tar epoxy for Water & Slurry application
- Derakane or Rubber lining for HCL and other highly corrosive chemicals
External Finish :
- Grit blasting followed by three coat paint system
